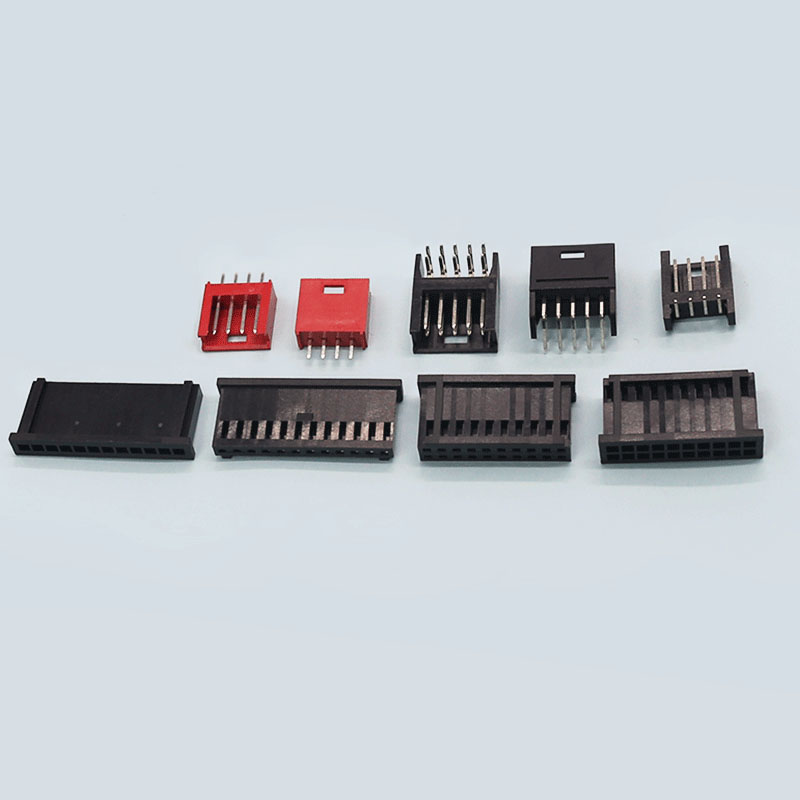

2530 Series 2.54mm Pitch (.100")
规格Specifications :
间距(Pitch): 2.54mm
极数(Poles): 2-22
额定电流(Current rating): 3A AC / DC
额定电压(Voltage rating): 250V AC / DC
耐压值(Withstanding voltage): 800V AC/minute
电线范围(Wire Size):AWG#22~26
温度范围(Temperature range): -25°C~+85°C
接触电阻(Contact resistance): ≤20mΩ
绝缘电阻(Insulation resistance):≥1000MΩ
- 分类:
- 线对板连接器
工程图纸| 型号(Item) | 料号(Part No.) | 材料(Material) | 极数(Poles) | 包装(QTY) |
|---|---|---|---|---|
| 胶壳(Housing) | 2530H-XX | PA66 UL94V-0 | 2-22 | 1000Pcs/Bag |
| 端子(Terminal) | 2530T | Phosphor Bronze | - | 15000Pcs/Reel |
| 针座(Wafer) | 2530W-XX | PBT UL94V-0 | 2-22 | 1000Pcs/Bag |
